ExacqVisionPro
Advanced Hybrid Video Surveillance NVR
Powerful Hybrid Video
Surveillance System
True Hybrid NVR - Seamlessly mix any
combination of Analog & IP cameras
Easy to Use - Contemporary, Intuitive User Interface
Advanced Analog Camera Support Hardware Compression for full frame rate on all
analog cameras
Up to D1 (4CIF) resolution on all analog inputs
Industry-Standard MPEG-4 Compression
Unriviled Video Quality and Clarity
Up to 32 analog inputs at full frame rate in single, cool-running 2U chassis
Extensive IP Camera Support Standard, PTZ
and Megapixel cameras of any resolution
Cameras from the most popular vendors, including Axis, Sony, and IQinvision
All compression formats
Add up to 64 IP cameras per server. Easy licensing with no activation or camera
MAC addresses required
Secure & Stable - Client Server
architecture for stability and security
Easy to Expand - Mix and match exacqVision IP and exacqVision Pro systems to add
additional IP and Analog cameras for a truly Hybrid, scalable enterprise video
surveillance system, from one camera to hundreds.

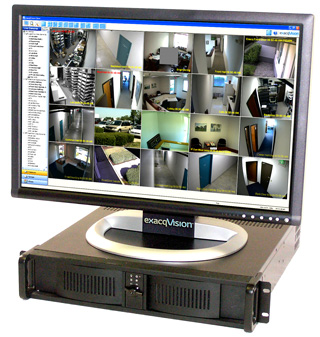

exacqVision Pro Network DVR is a hybrid
digital video recorder product line designed for advanced CCTV security and
surveillance applications. exacqVision Pro seamlessly merges real-time
digitizing of analog cameras and IP cameras. exacqVision Pro systems are
available in 4, 16 and 32 camera versions, packaged in both space-saving
2U-height rackmount chassis and compact desktop chassis.
Hardware Compression - Advanced MPEG-4 ASP Compression enables Real-Time Video
with watermarking on every camera
Analog & IP Cameras - Seamlessly mix any
number and combination of analog cameras and IP cameras
Completely Scalable - exacqVision Pro can
be implemented from single-camera systems up to enterprise systems with hundreds
of cameras
Common User Interface for All
Configurations - Powerful, easy-to-use client software is common to both
exacqVision Pro and exacqVision IP
Powerful – Simultaneous record, playback,
and search
POS/ATM Integration – Powerful Text
Insertion and indexing allow for POS & ATM video and transaction recording
Extensive I/O – 16/32 video inputs,
multiplexed video output, alarm inputs and outputs, audio, serial ports (RS-232
& 485) for POS/ATM and PTZ, API for third-party integration
Open Architecture for Integration – Open
API for third-party integration of video analytic software, access control
systems, more
Client-Server Design - Highly Secure for
Network Operation.
High Resolution Video - Video resolutions
on each input up to 4CIF (D1) for analog camera inputs, and support for IP
cameras of all resolutions, including megapixel resolutions for detail recording
in large areas (lobbies, common areas, perimeters, etc)
exacqVision Pro is available in both 2U
Rackmount and Compact Desktop units:
exacqVision Pro - Rackmount
Professional Hybrid NDVR in 2U Rackmount Chassis. Available in 16-input and
32-input versions. Includes 8 IP video inputs, more available optionally.
exacqVision Pro - Desktop
Professional Hybrid NDVR in space-saving compact-tower chassis. Available in
4-input and 16-input versions. Includes 8 IP video inputs, more available
optionally.
